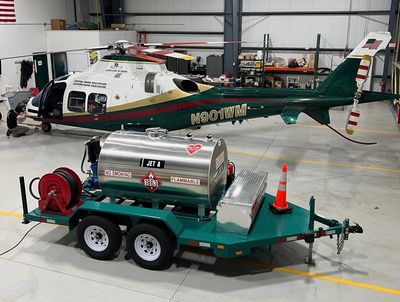

JST500AV-35-TL AIRCRAFT REFUELER / DEFUELER

This automotive tow behind fuel trailer is designed for the delivery of fuel to many applications: EMERGENCY RESPONSE TEAMS - AVIATION - MARITIME and so many more. Delivering fuel via a 50 Foot 1 inch hose and spring loaded hose reel @ 35gpm. Trailer can be towed by any vehicle with a towing capacity of at least 5,000 lbs

Trailer is STREET LEGAL in the following configuration: DIESEL or JET A FUEL ONLY. With the following requirements: 1. 10Klb Commercial tow vehicle i.e 3/4 ton, 1 ton pick up truck. 2. $5M Liability Insurance tow vehicle. 3. Hazmat Endorsement.

TANK: 1 EACH 500 GALLON (5052) POLISHED ALUMINUM SINGLE WALL with 2 each Baffles

TANK DIMENSIONS 500 Gallon: 46” Diameter x 72" Length

TRAILER: 186" Length x 80”  Height 78"

SHIPPING WEIGHT: 2180 LBS G.V.W.R.: 7000 LBS

COUPLER: 2 - 5/16 Inch, BALL TYPE, DOT Compliant: Running lights, Turn Signals, Stop Lights, Tag Bracket, 7way plug

AXLES: 2 EACH DEXTER - ROCKWELL AMERICAN 3500lb with Electric Brakes

WHEELS: STEEL WHITE SPOKE 15inch x 6 Lug / TIRES: RADIAL Load Range D

ALUMINUM DIAMOND TREAD LOCKABLE INVERTER BATTERY BOX

MARINE GRADE SHUT OFF SWITCH & BATTERY CHARGER / TENDER 5 Amps x 2 with built in Receptacle

FUEL PUMP: 1 each - 35gpm 120vac

MECHANICAL METER with Reset (Not for Resale)

COALESCER SEPERATOR .05 Micron FAA Regulation Fuel Filter

HOSE REEL with 50ft 1 inch Hose

NOZZLE: Straight shaft OVERWING Color Coded (AVGAS - RED) (JET A BLACK)

HOSE HANGER - 50FT 1 inch DEFUELING HOSE & DEFUELING WAND

STATIC LINE REEL 50ft

ELECTRICAL: 2 each 12volt DC Battery, Group 31 AGM Deep Cycle

SAFETY CONES - WHEELS CHOCKS

FIRE EXTINGUISHER 20lb BC vehicle mount

HAZMAT DECALS & AIRPORT SIGNAGE

 ALLOW 12 WEEKS FOR DELIVERY / HANDLING & FREIGHT CHARGES ARE NOT INCLUDED - PLEASE PROVIDE DESTINATION INFORMATION TO CALCULATE SHIPPING CHARGES. TRAILER ORDERS MUST BE DELIVERED TO A COMMERCIAL BUSINESS WITH A LOADING DOCK AND OR FORKLIFT

Please Note: The Conveyance of more than 119 gallons of any Gasoline – Avgas, or 119 gallons Jet A - Diesel Fuel may be regulated by Federal, State and Local Regulatory Agencies. Fueling tanks that are over 119 gallon capacity are bulk packages, which by definition are cargo tanks (see CFR49, Section 171.8). Tanks that are 119 gallons or less are non-bulk packages.
